Orion 42-Series

OPM4260 | 4260R

Infinitely Expandable | Multi Display MPDP

Orion’s bezel-less design features a total seam size of only 1.9mm reproducing bigger, unobstructed images. Orion’s cutting edge infinitely expandable Multi- PDP is an innovative video wall solution which can be configured to any size with no resolution limitation.

“Near Seamless Design Infinitely Expandable Multi-Vision”

  • Virtually Seamless Design

  • Infinitely Expandable Display

  • Superior Picture Quality & Performance

Evolution of Seamless MPDP

thinnest seam gap at 1.9mm for large-format Displays


System Connections

Normal Connection

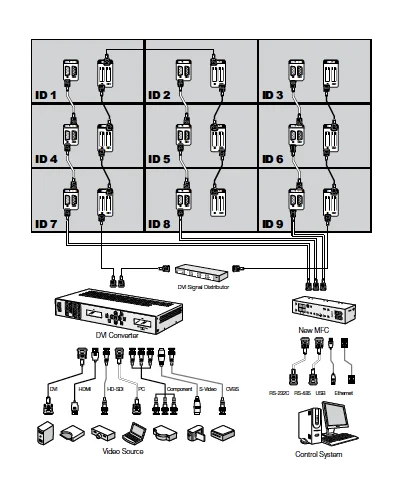

Other Connections


Options

MAIN FRAME


DVI CONVERTER


AUTO WHITE BALANCE


Multi Function Controller


Features

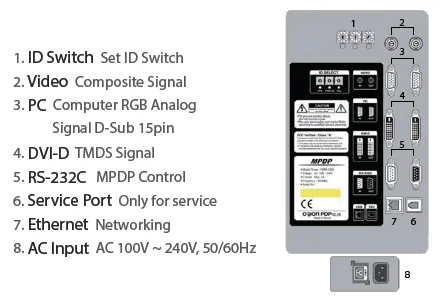

Input & Output Terminal


RS-232C & ETHERNET CONTROL

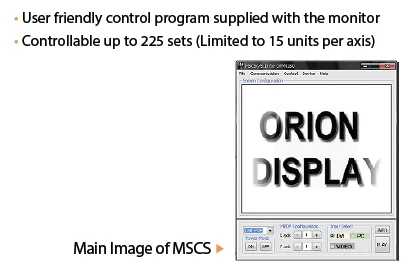

Multi Screen Control System


Technology

Anti Burn-in system

Effectively reduces the occurrences of color deterioration and burn-in effects utilizing unique combinations of Super Robust Phosphor and Optimized Driving Technology.

Specifications

Model OPM-4260 OPM-4260R
Diagonal 42” (16:9) 42” (16:9)
Resolution 853(H) x 480(V) 853(H) x 480(V)
Peak Brightness 1,700cd/m² 1,700cd/m²
Contrast Ratio 30,000:1 30,000:1
Filter Type AG Film Filter AG Film Filter
Seam Size 1.9mm 3.8mm
Operating Temperature 0°C - 35°C 0°C - 35°C
Power Supply 100 ~ 240V AC, 50/60 Hz 100 ~ 240V AC, 50/60 Hz
Average Power Consumption 210W (IEC62087 Ed2. Measurement Method-On Mode)
Max Power Consumption 330W 330W
Connectivity | Input DVI (DVI-D), PC (D-Sub 15Pin), Video (BNC), Ethernet (RJ45)
RS-232C (D-Sub 9Pin), SVC (RJ11, Only for Service)
Connectivity | Output DVI (DVI-D), PC (D-Sub 15Pin), Video (BNC)
RS-232C (D-Sub 9Pin)
