Orion 55-Series

OLM-5510 | OLM-5520 | OLM-5550

Multi LCD Video Wall

Breathtaking technology with Full HD and Ultra Narrow Bezel (5.5mm), the Orion 55-Series pioneers the multi display market with near seamless tiled display experience and vivid image. Being equipped with eco-friendly DIRECT LED BLU (Back Light Unit), the 55” FHD multi display consumes less power than conventional CCFL BLU model.

Ultra Narrow Bezel


Specifications

Model OLM-5510 OLM-5520 OLM-5550
LCD Panel VA IPS VA
Aspect Ratio 16:9 16:9 16:9
Resolution 1,920(H) x 1,080(V) 1,920(H) x 1,080(V) 1,920(H) x 1,080(V)
Active Display Area 1,209.6 x 680.4 mm 1,209.6 x 680.4 mm 1,209.6 x 680.4 mm
Pixel Pitch 0.63 x 0.63mm 0.63 x 0.63mm 0.63 x 0.63mm
Display Colors 16.7 Million 1.06 Billion 16.7 Million
Luminance of White 450cd/m² 500cd/m² 700cd/m²
Contrast Ratio 3,500:1 400:1 3,500:1
Seam Gap 5.9mm 5.6mm 5.7mm
Viewing Angle H:178°, V:178° H:178°, V:178° H:178°, V:178°
Response Time 8ms 10ms 8ms
Operating Temperature 5°C - 35°C 5°C - 35°C 5°C - 35°C
Power Supply AC 100V ~ 240V AC 100V ~ 240V AC 100V ~ 240V
Max Power 171W 187W 235W
Typical Power 163W 110W 205W
Stand-By Power 3.0W 3.0W 3.0W
PC/DVI Signal VGA, SVGA, XGA, SXGA, UXGA, WXGA480p, 576p, 720p(50/60),
1080i(50/60), 1080p(50/60)
Video Signal NTSC, PAL, SECAM
Frequency H:31.5 ~ 75kHz, V:50, 60 Hz
Input DVI-D x 1, PC x 1, Video x 1, RS-232C x 1, LAN x 1, Service x 1
Output DVI-D x 1, PC x 1, Video x 1, RS-232C x 1
Min 50,000Hrs(Ta:25±°C)

OLM-5510 | OLM-5550

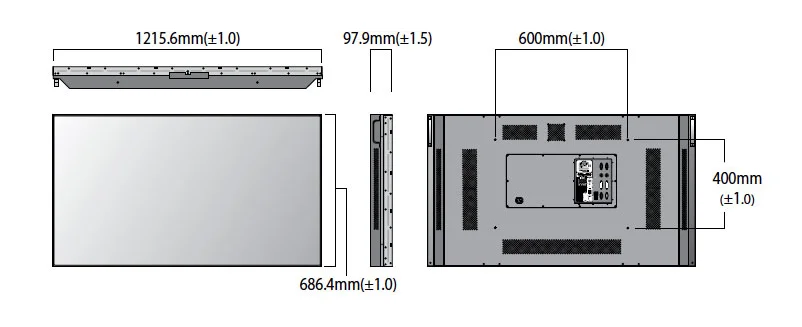

OLM-5520
